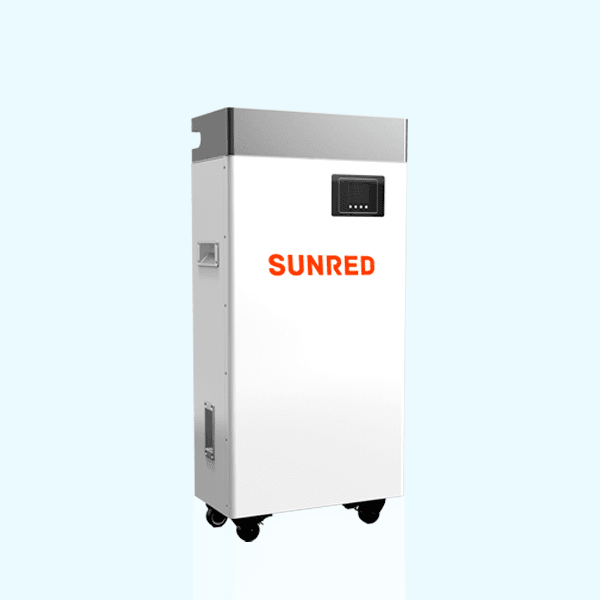

ESS SR-STAR-10K/15K
The ESS SR-STAR-10K/15K battery is specially designed for residential applications by Zetara. It owns several battery modules and each module has an intelligent BMS integrated inside, which offers great advantages in terms of safety, cycle life, energy density and temperature range.
Model: SR-STAR-10K/15K
Battery Parameter
Rated Voltage (V): 51.2
Rated Capacity (Ah): 300Rated Energy (Wh): 15360
Operation Parameter
Charge Voltage Range (V): 56.0~57.0
Recommended Charge Current (A): 100
Max Charge Current (A): 200
Max Discharge Current (A): 200
Physical Parameter
Dimension - W*D*H (mm): 460*900*230
Weight (kg): 126.5
Communication Port: RS485、CAN
Display: LED + LCD
Terminal: Plug-inEnvironment Parameter
Humidity (%): 5~95% RH
Charge Temperature Range (℃): 0~45
Discharge Temperature Range (℃): -20~55
Storage Temperature Range (℃): -20~45Service Life
Cycle Life (Time): ＞6000 (0.5C@ 25℃, 80% DOD）
Design Life (Year): 15
Certification
Safety & Certification: CE, IEC62619
Transportation: UN38.3
Multi-scenario
• Multifunctional integration, supporting PV and generator access, on grid to off-grid switching<20ms
Economical & Efficient
• High energy efficiency
• Pre-assembled, transportation of complete
• High-efficiency heat dissipation, increase battery life and system discharge capacity
Real-time monitoring and control
• 7*24h Real-time remote and local monitoring and control
• Intelligent early warning, regular automatic safety checks, and eliminationof hidden dangers
Flexible & Expandable
• Single unit 100-215kWh capacity
• Parallel MAX. up to 2MWh capacity battery
