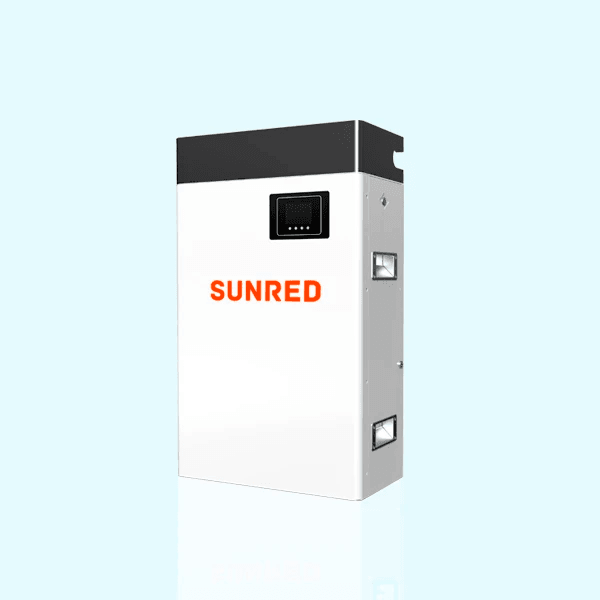

ESS SR-STAR-5K/10K/15K
The ESS SR-STAR-5K/10K/15K battery was designed especially for residential applications residential applications by Sunred. It has several battery modules and each module has an intelligent BMS integrated inside, which offers great advantages in terms of safety, life cycle, energy density and temperature range.
Model: SR-STAR-5K/10K/15K
Battery Parameter
Rated Voltage (V): 51.2Rated Capacity (Ah): 200
Rated Energy (Wh): 10240Operation Parameter
Charge Voltage Range (V): 56.0~57.0
Recommended Charge Current (A): 100
Max Charge Current (A): 200
Max Discharge Current (A): 200Physical Parameter
Dimension: W*D*H (mm): 455*750*230
Weight (kg): 88.7
Communication Port: RS485、CAN
Display: LED + LCD
Terminal: Plug-inParâmetro ambiental
Umidade (%): 5~95% RH
Faixa de temperatura de carga (℃): 0~45
Faixa de temperatura de descarga (℃): -20~55
Faixa de temperatura de armazenamento (℃): -20~45
Vida útil
Vida útil do ciclo (tempo): ＞6000 (0,5C@ 25℃，80% DOD)
Vida útil do projeto (ano): 15
Certificação
Segurança e certificação: CE, IEC62619
Transporte: UN38.3
Multi-scenario
• Multifunctional integration, supporting PV and generator access, on grid to off-grid switching<20ms
Economical & Efficient
• High energy efficiency
• Pre-assembled, transportation of complete
• High-efficiency heat dissipation, increase battery life and system discharge capacity
Real-time monitoring and control
• 7*24h Real-time remote and local monitoring and control
• Intelligent early warning, regular automatic safety checks, and eliminationof hidden dangers
Flexible & Expandable
• Single unit 100-215kWh capacity
• Parallel MAX. up to 2MWh capacity battery
