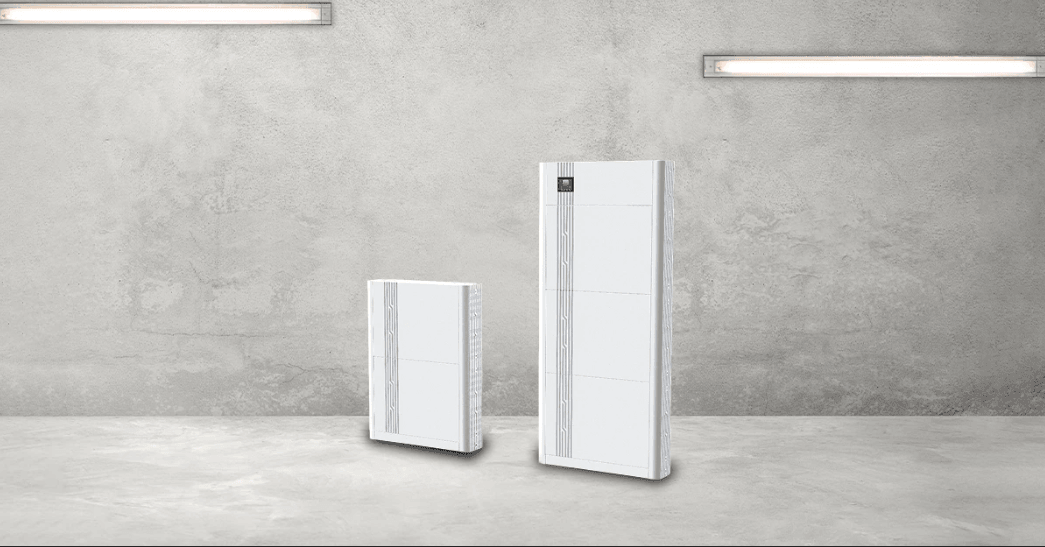

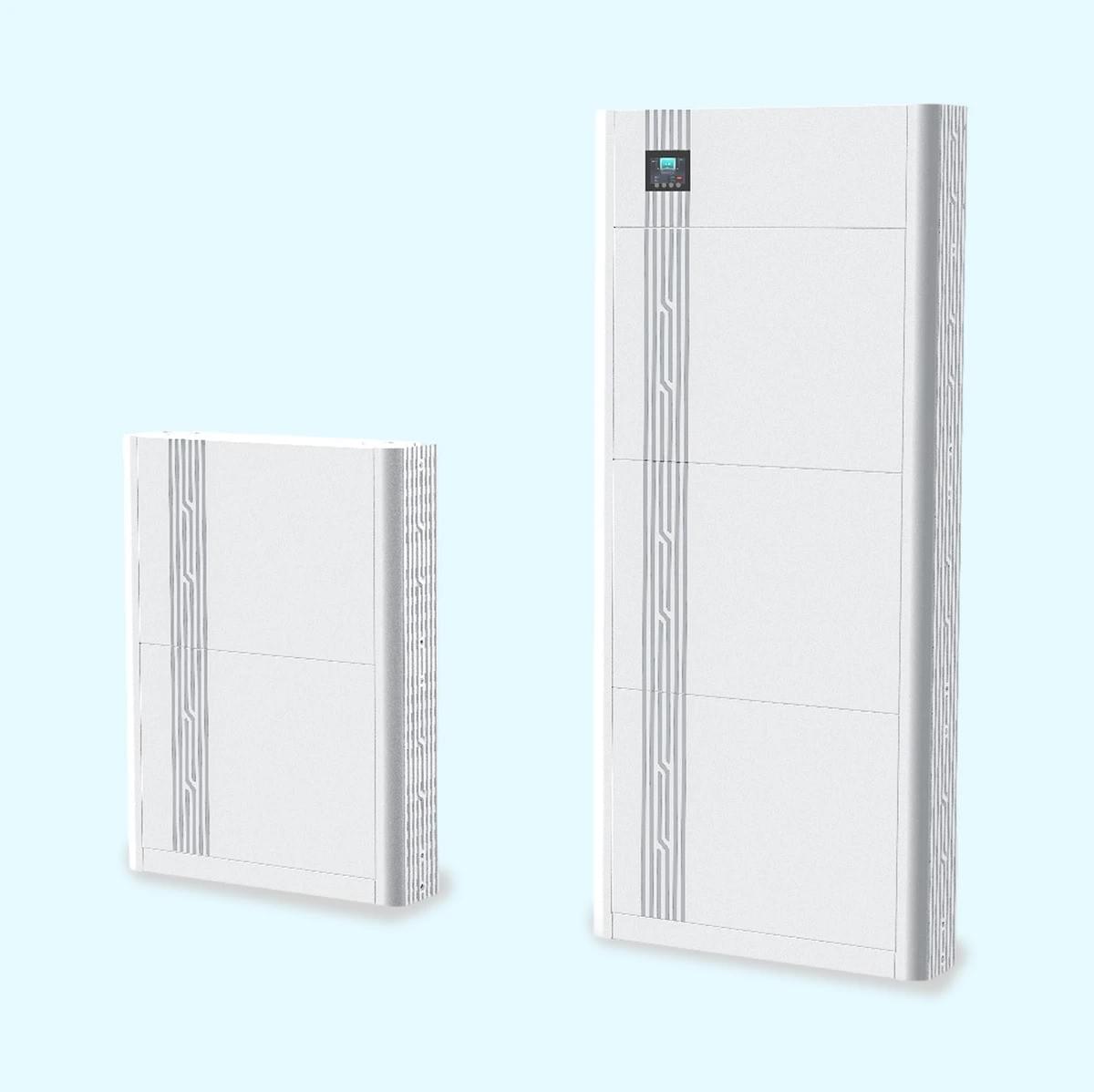

SR-BOX HV
The Inspiration Series product features integrated design, integrated installation, and protection rating up to IP65, and is mainly used in residential photovoltaic systems. It integrates a hybrid inverter and a set of LFP batteries. The battery pack has a modular and expandable design, allowing for flexible power configurations, and the hybrid inverter supports 5 to 12 kW of power. The product supports simultaneous access to the grid, photovoltaic power, and battery power, and also has an off-grid operation function. The system has the advantages of high energy density, long service life, and high compatibility.
Model: SR-BOX HV
General parameters
Battery module type: SR-BOX HV
Module number: 2, 3, 4, 5
Nominal input/output voltage (V): 350~450
Normal operating voltage (V): 360~435
Nominal energy (Wh): 10240, 15360, 20480, 25600
Nominal voltage (V): 400
Nominal output current (A): 15, 22.5, 30, 37.5
Dimensions L*W*H (mm): 674*170*890, 674*170*1310, 674*170*1310 + 674*170*470, 674*170*1310 + 674*170*890
Weight (kg): 112.25, 167.25, 224.5, 279.5
Max. number of batteries in parallel: 15
Service life cycle
Cycles: >6000 (0.5C @25ºC, 80%DOD)
Temperature parameters
IP: IP65
Charge temperature (ºC): 0~45
Discharge temperature (ºC): '-20~60
Installation method: Floor-mounted
Certifications
Safety: CE, IEC/EN62619, IEC/EN62477, UL1973, UL9540A
Transport: UN38.3
Advanced Technology
● Separate internal air duct without damaging printed circuit boards and other sensitive internal components
● Power input, avoiding impact on the input network
● Supports parallel mode up to 9.6 MVA
● Redundant auxiliary power supply design, improving system reliability
Green Energy
● High AC/DC efficiency of up to 96.5%, reduces heat dissipation and limits energy consumption costs
● Wise ECO mode efficiency of up to 98%
● Low THDi <3%, reduces power grid pollution
● Low noise <75 dB, reduces noise pollution
Real-time monitoring and control
• 7*24h Real-time remote and local monitoring and control
• Intelligent early warning, regular automatic safety checks, and eliminationof hidden dangers
Flexible Design
● Common battery bank, saves space
● Self-charging test function, saves costs for charging rental and energy loss
● Frequency converter mode, adapts to different electrical networks
● Programmable dry contact, meets different functional requirements
